Brand:
A-OKItem NO.:
AM25Product Origin:
ChinaColor:
YellowLead Time:
30 days(A-OK standard)Order(MOQ):
1000 PCSCertificate:
CE/CB/TUV/C-TICK/R&TTE/FCC/RoHS/C-UL-US/C-TUV-US
Motor Specifications
|
Model No |
Torque |
Speed |
Voltage |
Power |
Current |
Frequency |
Battery Capacity |
Lift Cap. |
|
AM25D-1/30-ES-E-Z |
1Nm |
30rmp |
DC 5V input |
6.7w |
900mA |
RF 433Mhz
+ Zigbee |
2600mA/H |
5.5kg
in 38mm tube |
Concealed antenna
Both RF and Zigbee antenna are built-in hided inside the motor head. RF communication range can reach 80meters, neat design and not affecting performance
Reserved bracket adaptor hole
Reserved two bracket adaptor holes on motor head, which can largely be compatible with different system.
Mechanical power on/off switch
Mechanical power on/off switch can cut off the power during transportation and extended the storage time up to 1.5 year
USB-C charging port
Adapt the USB-C most popular charging port, following energy eco-friendly rules, make the best compatible
Wide voltage Solar charging solution
Solar charging voltage fluctuate with the sunshine strong and weak. This motor can accept 5V-20V wide range solar charging.
Electronic Limit
Electronic limit motor, can motor can set up/down and 4 favorite intermediate position.
Soft jog and tilt function
Motor can softly start and stop; Before limit settings, motor can do soft jog and fine tilt to limit position.
Speed adjustable
Motor can do speed adjust. Higher speed/normal speed and quiet running speed
RF+Zigbee 3.0 combo chipsets,
Multiple control way
Bi-directional communication
Motor with built in RF and Zigbee two chipsets, which can be control by RF remote and connect to APP via Zigbee signal;

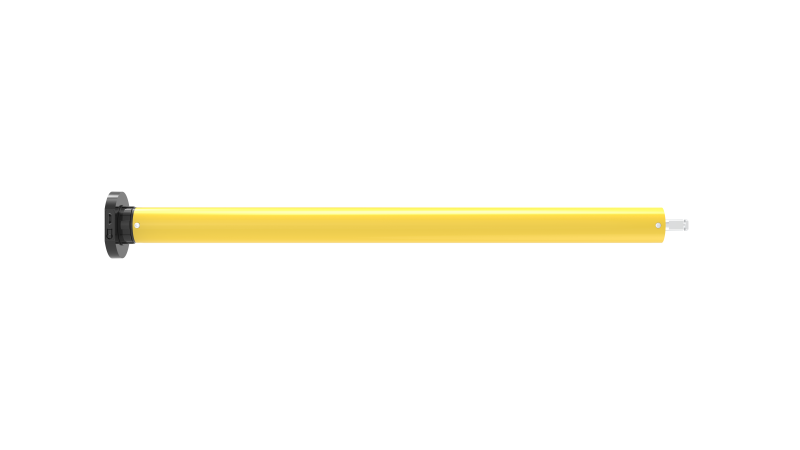

AM25 built-in lithium battery tubular motor is a constant speed electronic limit tubular motor,12V DC tubular motor widely used for window blinds & solar shades system. The battery is built in the motor inside, without wiring, and the use of simple, convenient.
AM25 Built-in Lithium Battery motors are mainly used in indoor sunshade roller blinds such as residences, offices, hotels, etc. The rechargeable lithium battery can be built-in or externally connected to the battery pole, pure wireless applications.
