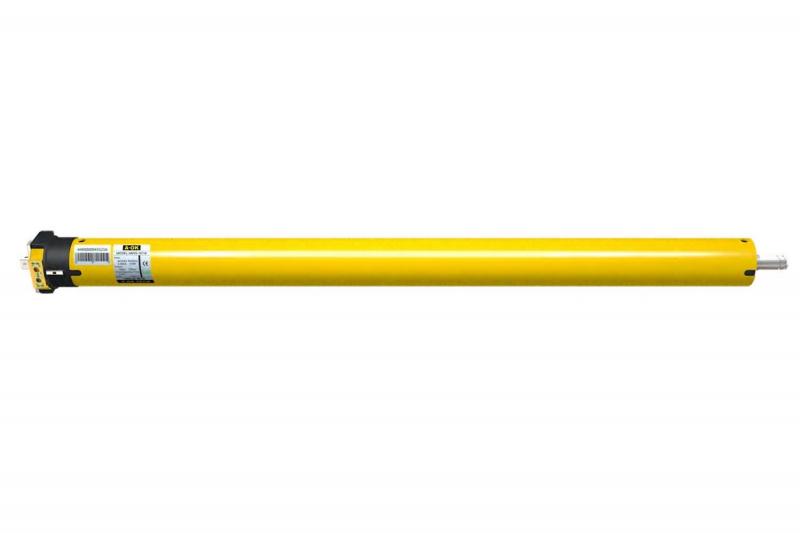

AM45 AC Electronic Parallel Connection Tubular Motor

AM45 parallel tubular motor can implement multiple motors in parallel connection, realizing reliable group control control, simple wiring, and convenient engineering installation

  • Brand:

    A-OK
  • Item NO.:

    AM45
  • Color:

    Yellow or custom
  • Lead Time:

    30 days(A-OK standard)
  • Order(MOQ):

    1000 pcs
  • Warranty:

    up to 5 years
  • Certificate:

    CE/CB/TUV/C-TICK/R&TTE/FCC/RoHS/C-UL-US/C-TUV-US
  • Product Detail

AM45 AC Electronic Parallel Connection Tubular Motor

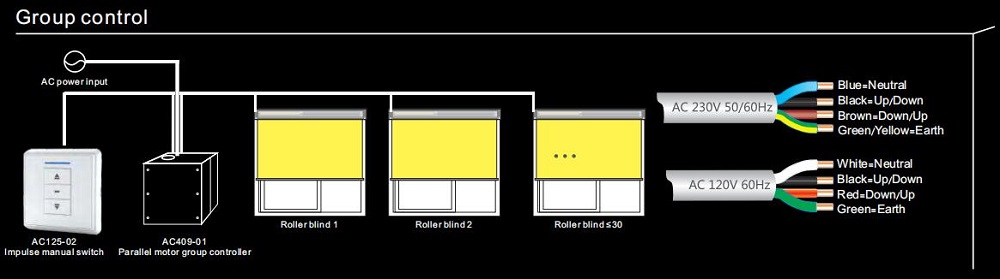

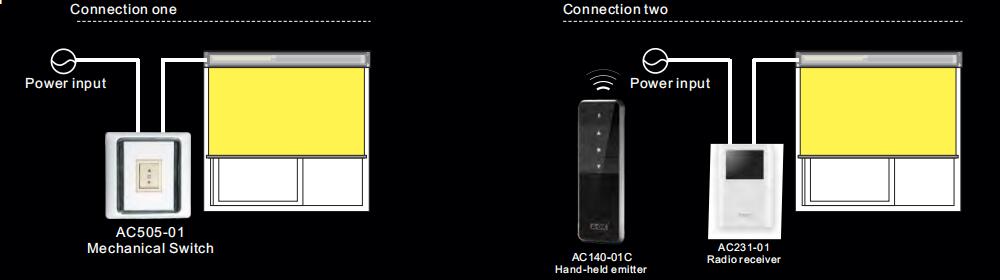

AM45 Parallel Connection Tubular Motors can be connected individually or in groups on a main power supply. It can be connected to building applications in groups, with reliable performance and saving engineering costs.



AC Parallel Connection Tubular Motor
AC Parallel Connection Tubular Motor
AC Electronic Tubular Motor

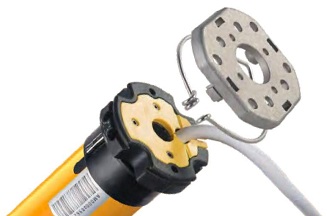

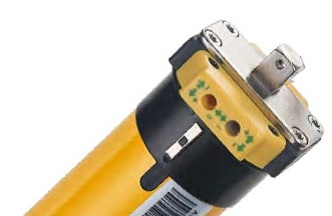

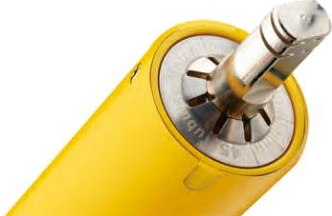

Standard limit head Fast installing type limit head A type drive shaft



Features:

Max. limit circle is 55 circles
Repeat positioning accuracy is as low as 2 degrees
Double breaking design with patent
Running noise is around 45dB



Application:

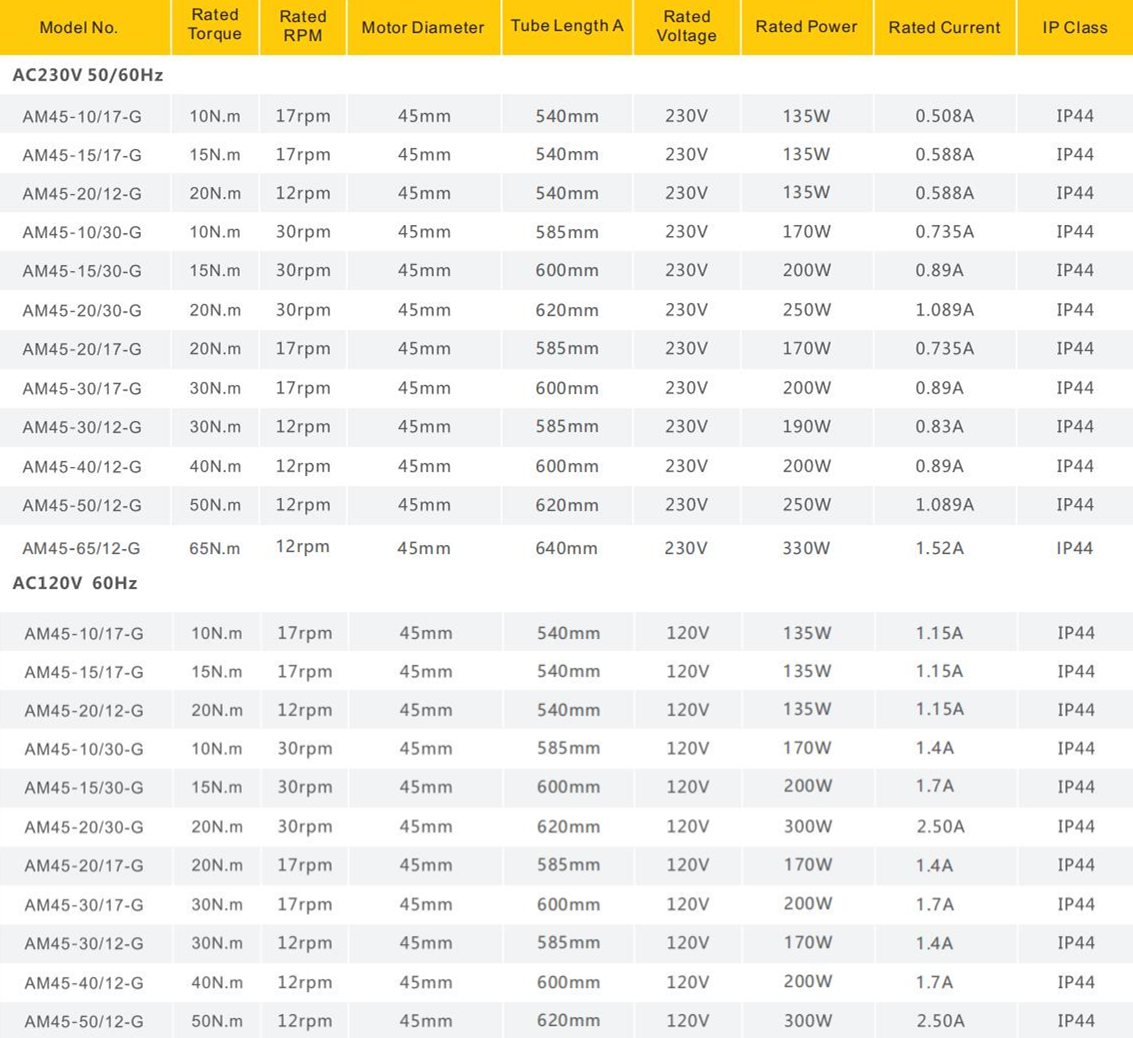

Parameters:
