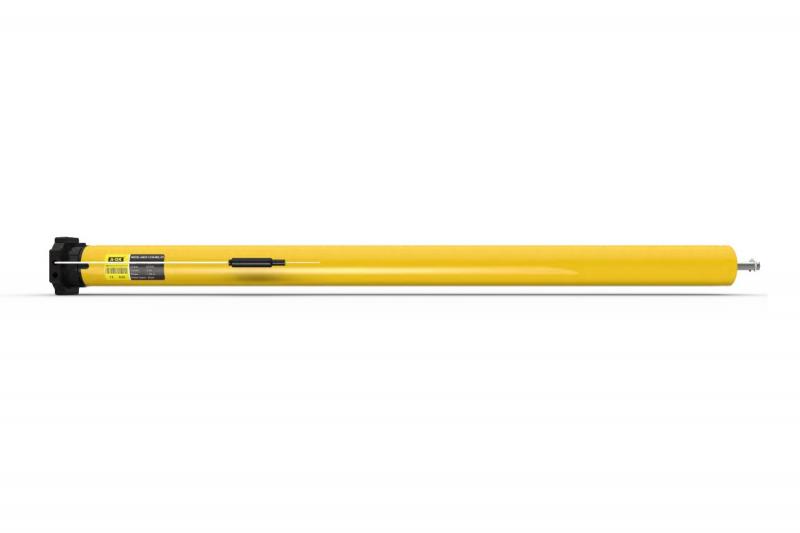

AM25 built-in lithium battery tubular motor is a constant speed electronic limit tubular motor,12V DC tubular motor widely used for window blinds & solar shades system. The battery is built in the motor inside, without wiring, and the use of simple, convenient.
Brand:
A-OKItem NO.:
AM25Color:
Yellow or customLead Time:
30 days(A-OK standard)Order(MOQ):
1000 PCSWarranty:
up to 3 yearsCertificate:
CE/CB/TUV/C-TICK/R&TTE/FCC/RoHS/C-UL-US/C-TUV-US
AM25 DC Intelligent Zigbee Tubular Motor
Specifications:
|
Model No. |
Rated Torque |
Rated RPM |
Motor Diameter |
Tube Length A |
Rated Voltage |
Rated Power |
Rated Current |
Frequency |
IP Class |
Sensitivity |
|
|
AM25-1.2/30-ES-EZ |
1.2N.m |
30rpm |
25mm |
415mm |
DC 7.4V |
6.7W |
900mA |
433.92MHz |
IP44 |
-110dBm |
|
|
AM25-1.2/30-ES-Z |
1.2N.m |
30rpm |
25mm |
260mm |
DC 12V |
6.6W |
550mA |
433.92MHz |
IP44 |
-110dBm |
|
Application:

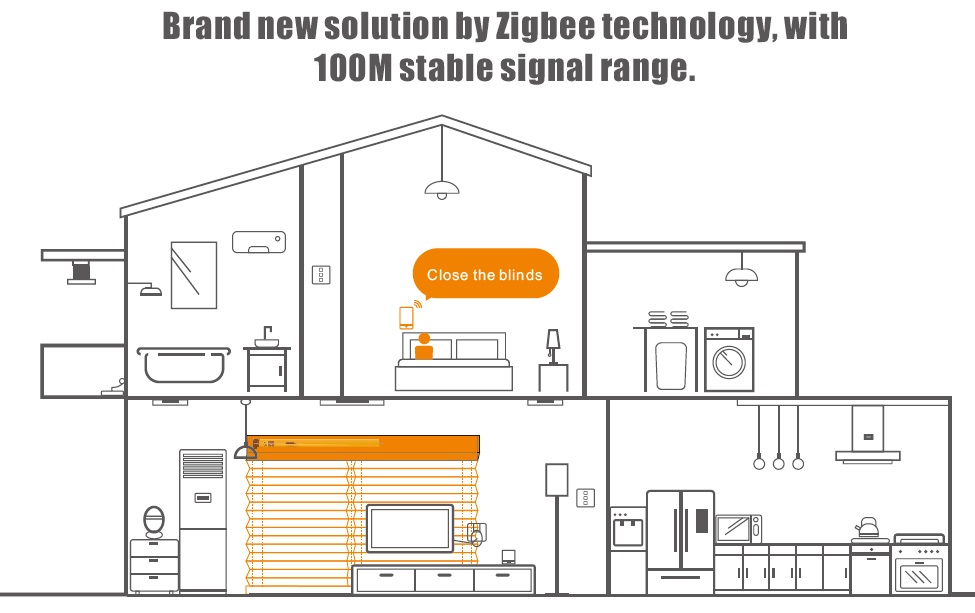

Fully new solution by Zigbee technology is designed to meet the high automation requirement for luxury villas and hotels by the 100M stable signal range.A ZigBee hub is required for connecting with the motor for the normal and successful control of connected devices; powerful enough to work with various motorized roller blinds,roller shutter,wooden venetian blinds,and even motorized clothes pole.
Features:
1.Built in lithium battery type or external battery for optional
2.Fully charged lithium battery will support one up and down operation each day for 6 months.
3.Running noise lower to 40dB
4.Industrial level electronic components ensure good performance from interference working environment
5.Auto correct limit after power off
6.To set limit by remote, simplify your operation
7.Stop by block to protect object and user from damage
8.Energy saving design with patent, powered by battery pole of solar panel
9.Control board is sealed by plastic box, safe and stable
10.To operate your blinds by HOMEMATE app through voice
Controling:
Wireless remote control: operate with remote control, Easy operation and adjustment
Multi-controlling available in motors, please contact us for any enquires and technical help.
AM25 Built-in Lithium Battery motors are mainly used in indoor sunshade roller blinds such as residences, offices, hotels, etc. The rechargeable lithium battery can be built-in or externally connected to the battery pole, pure wireless applications.
This motor is mainly used for small and medium size of roller shutters, rolling doors and awnings etc. It can be manually operated when there is no power supply.
Our AM24 DC electronic dual-axis limit motor is mainly used in 25mm indoor aluminum shutters, honeycomb shutters, hollow aluminum shutters, etc.
AM50 quiet curtain motor comes with advanced technology for heavier loading and less noise,which operate even bigger sized curtain in nicer quiet and elegant way.
IPv6 network supported
