AM15 Low-power built-in battery DC tubular motor

15mm 9V DC rechargeable tubular motor,Charging with Micro USB cable, built Lithium Ion battery allowing for a completely wirefree installation of roller shades for windows.

  • Brand:

    A-OK
  • Item NO.:

    AM15
  • Color:

    Sliver or custom
  • Lead Time:

    30 days(A-OK standard)
  • Order(MOQ):

    1000 PCS
  • Warranty:

    up to 3 years
  • Certificate:

    CE/CB/TUV/C-TICK/R&TTE/FCC/RoHS/C-UL-US/C-TUV-US
  • Product Detail

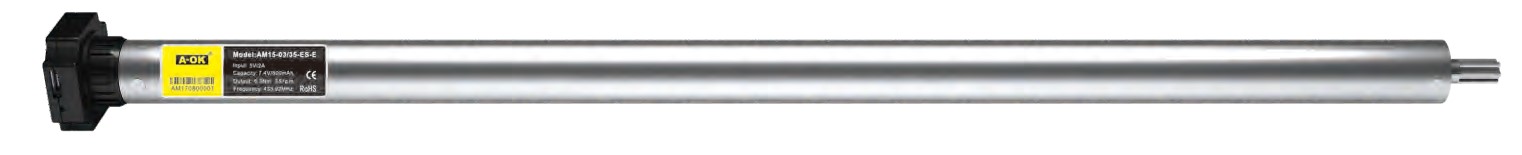

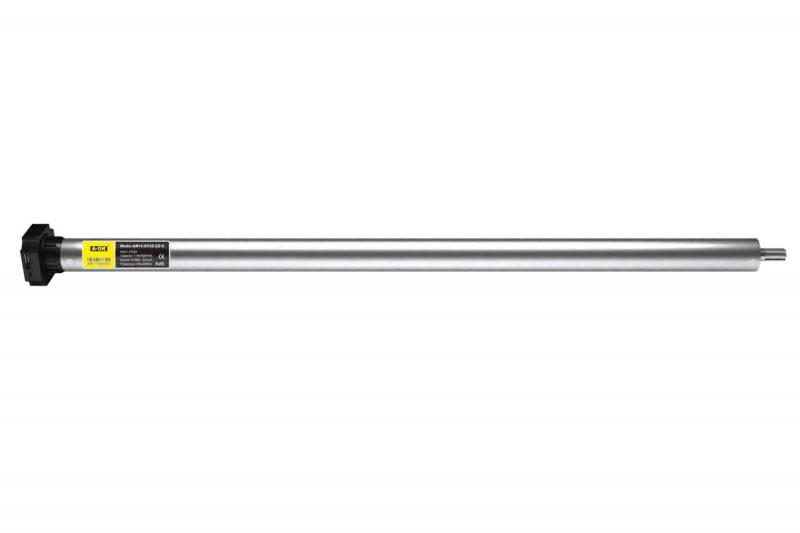

AM15 Built-in Battery DC Tubular Motor












Specifications:


Model No.

Rated Torque

Rated RPM

Motor Diameter

Rated Voltage

Rated Current

Insulation  class

Continuous  Working Time

Cable Length

Working  Temperature

AM15-03/35-ES-E

0.3N.m

35rpm

15mm

DC5V

0.5A

IP44

5mins

15cm

-20℃~+55℃


Application:

AM15 tubular motor is mainly installed into hollow venetian blinds, indoor small size aluminium and wooden slat venetian blinds, widely  applied to the office building, meeting room, house etc indoor shading. With the electronic limit switch and built in receiver,easier for  installation and operation.





Features:

1.9V lithium battery built inside, full charged will support motor running up and down once for 4 months
2.Quiet running with noise level below 40dB
3.Industrial level electronic components ensure good performance  from interference working environment
4.Control board is sealed by plastic box, safe and stable
5.Auto correct limit after power off
6.To set limit by remote, simplify your operation
7.Stop by block to protect object and user from damage
8.Energy saving design with patent, powered by battery  pole of solar panel



Controling:

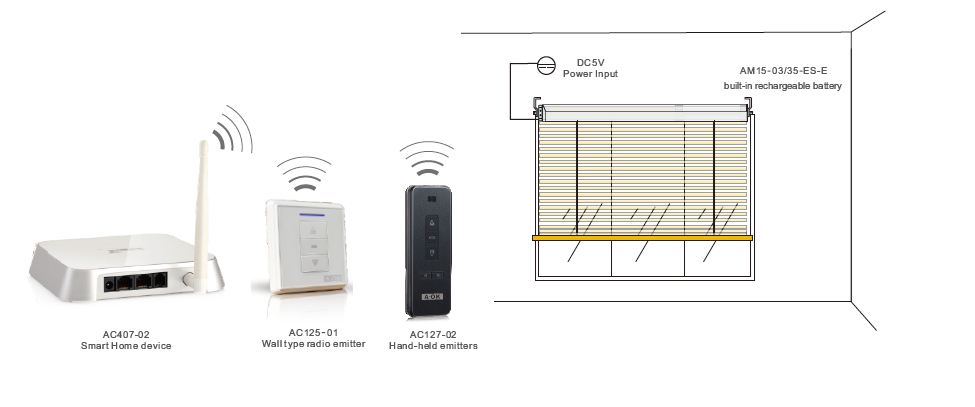

Wireless remote control: operate with remote control, Easy operation and adjustment



Multi-controlling available in motors, please contact us for any enquires and technical help.
