AM25 Handle external intelligent DC tubular motors

AM25 DC motor is consist of DC motor, reducer, PCB board, shock absorbers and handle controller. It has the characteristics of small volume, light weight, low noise, accurate limit position, strong concealment, convenient installation and so on. Especially the low power consumption design makes the motor runing longer than expects.

Features

◇ Rechargeable by lithium battery, battery pole or solar panel;

◇ Helical gear design with patent, noise level is 35dB；

◇ Auto correct shifting during braking；

◇ Customized operation stick with PVC sheathed sleeve；
◇ Wand control makes your system more humanized；
◇ Obstacle detectable for protection；
◇ Patented power saving design will make your system to be environmental protection and energy saving；

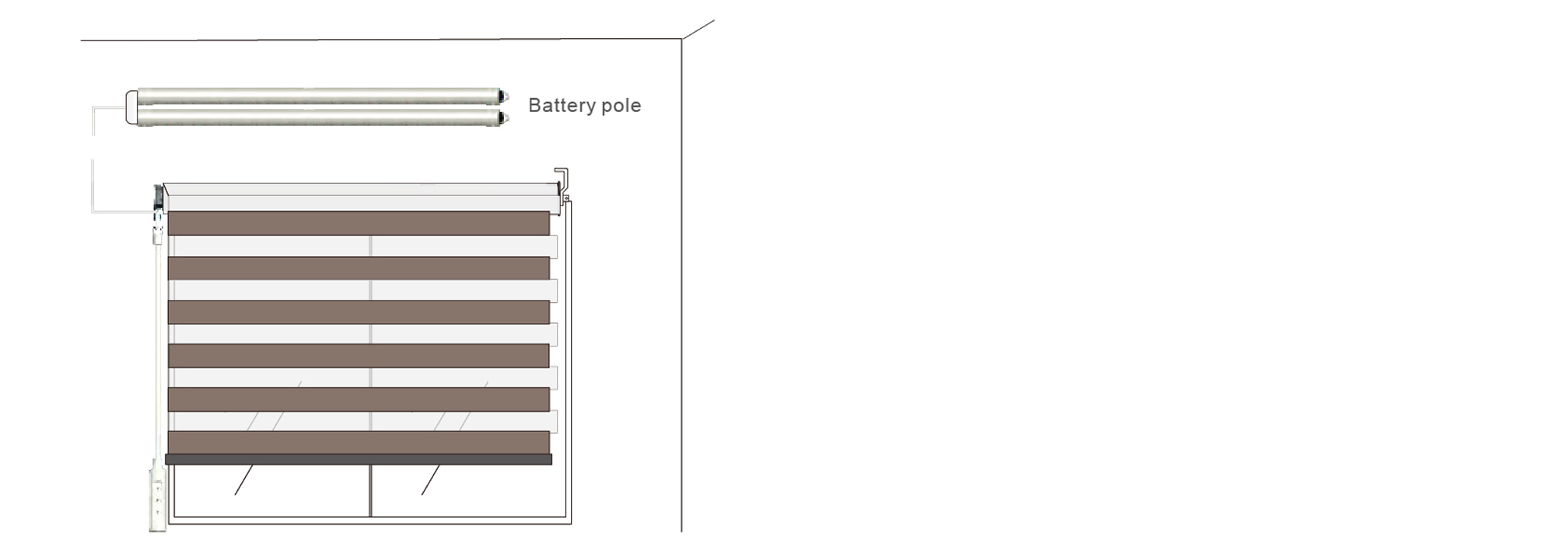

Application 1

External battery pole supplying power to motor, suit for the applications which are without reserved power supply, effffective solutions to solve the power supply troubles.

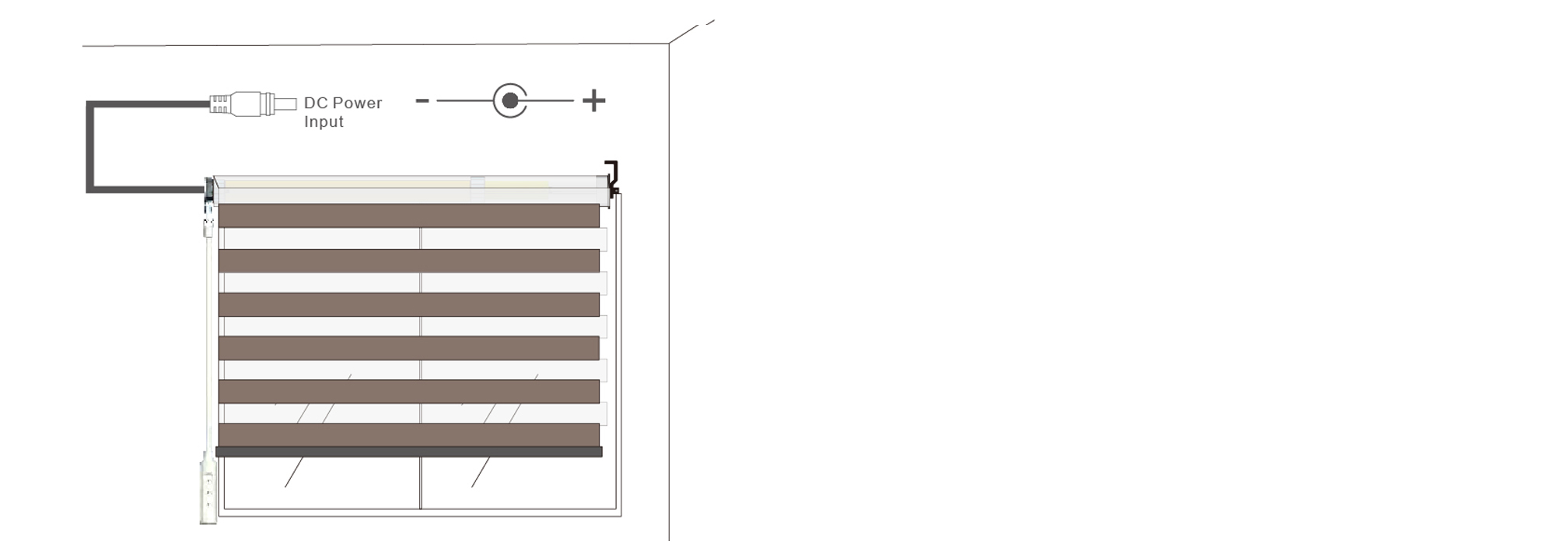

External DC power supply, can realize manual control up ,stopand down function, easy and flflexible.

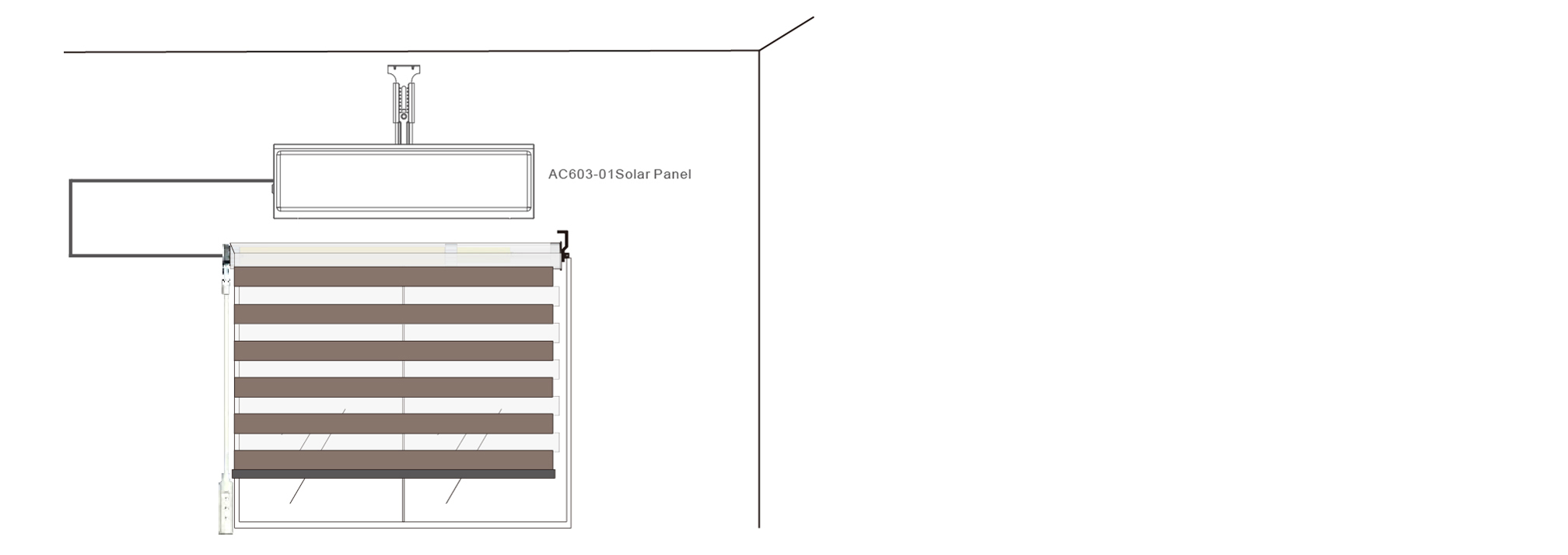

Application 3

Connect an external solar panel or battery pole to charge motor, suit for the applications which are without reserved power supply, no need extra cables. Solar energy conversion into electricity, which is energy saving and environmental protection.
