AC249-01 Garage Door Controller (Built In Lamp)

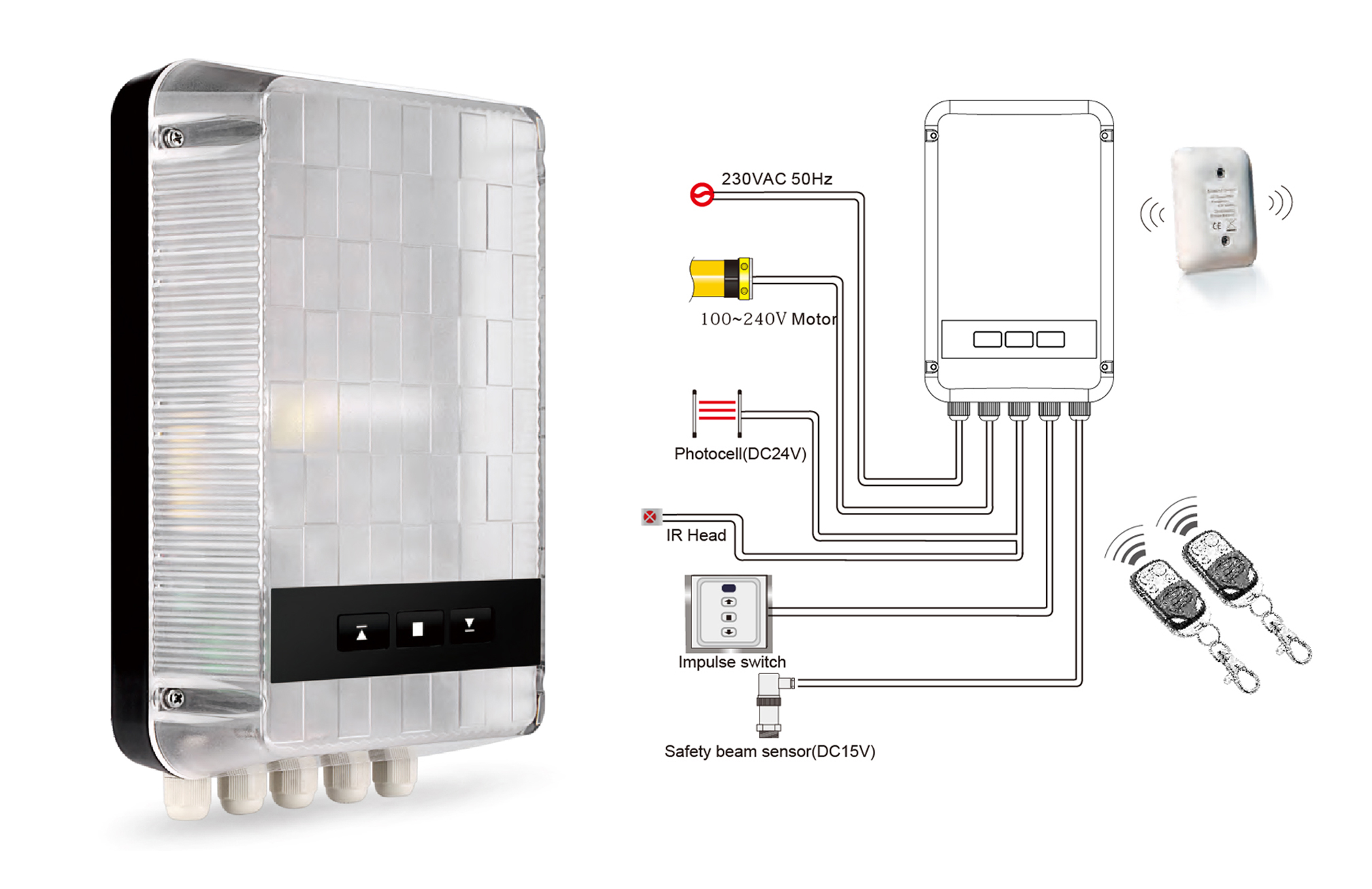

AC249-01 specialized in garage door, is an automatic and comprehensive control system with built-in lamp, which not only can control the garage door by remoter to up/down and stop, but also has multiple protection functions, with these unique design, it can be applied in roller garage door, motorized door, faster roller door which have a high requirement for safety.

Features

◇ 433MHz or 868MHz, rolling code;

◇ Stop or stop and rebound when meet obstacle to avoid damage of objects;
◇ Auto set motor running time (1-90s);
◇ Auto set close door time (1-180s after the door fully opened);
◇ Over loading protection;
◇ Waterproof design, IP65 level, suitable for outdoor usage;
◇ UV resistant and fire proof plastic housing;
◇ Specialized motor relay , work with motor power below 500W;
◇ Superheterodyne receive module, with sensibility -110dBm, operation distance 200m in the open air;
◇ SMT assembly, damp-proof surface;
