4 routes group controller(AC408-02)
Jun 02, 2022AC408-02
Group controller works with mechanical manual switch and all A-OK radio receiver, to operate multi-unites motorization blinds at the same time.
Features
◇ Fancy shape design,suitable for kinds of decoration style;
◇ Fire-proof and anti-UV design, anti-aging;

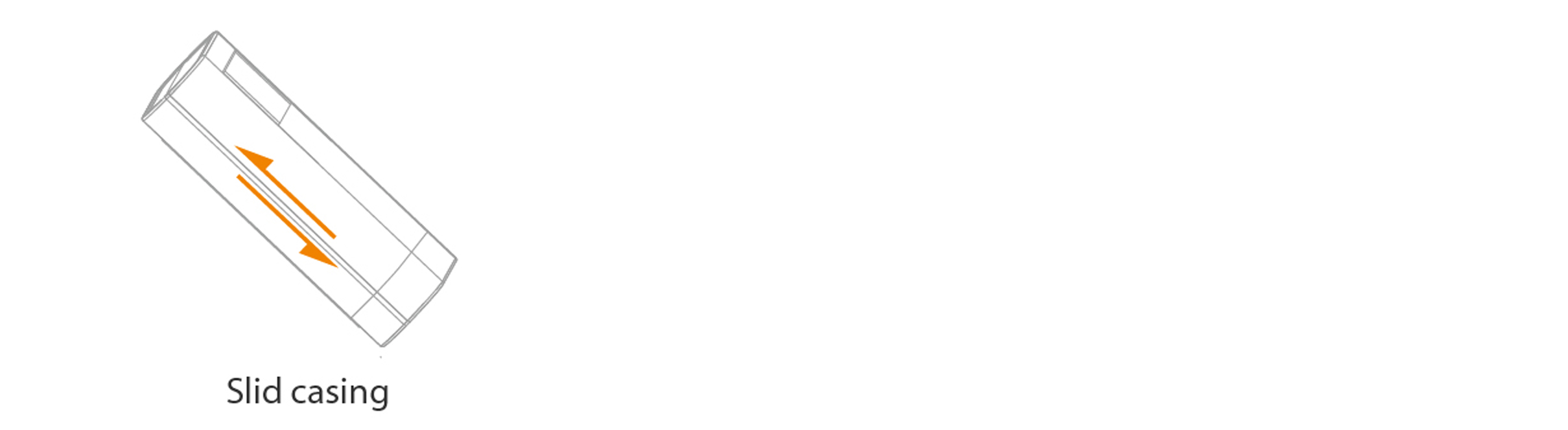

◇ Slid housing, ease and fast for installing;
◇ To achieve the single/group control for 4 motors easily;
◇ Available for RF and manual control;
◇ Photoelectric isolation dry contact middle control system, strong anti-jamming ability with long transmit distance;
Application mode:

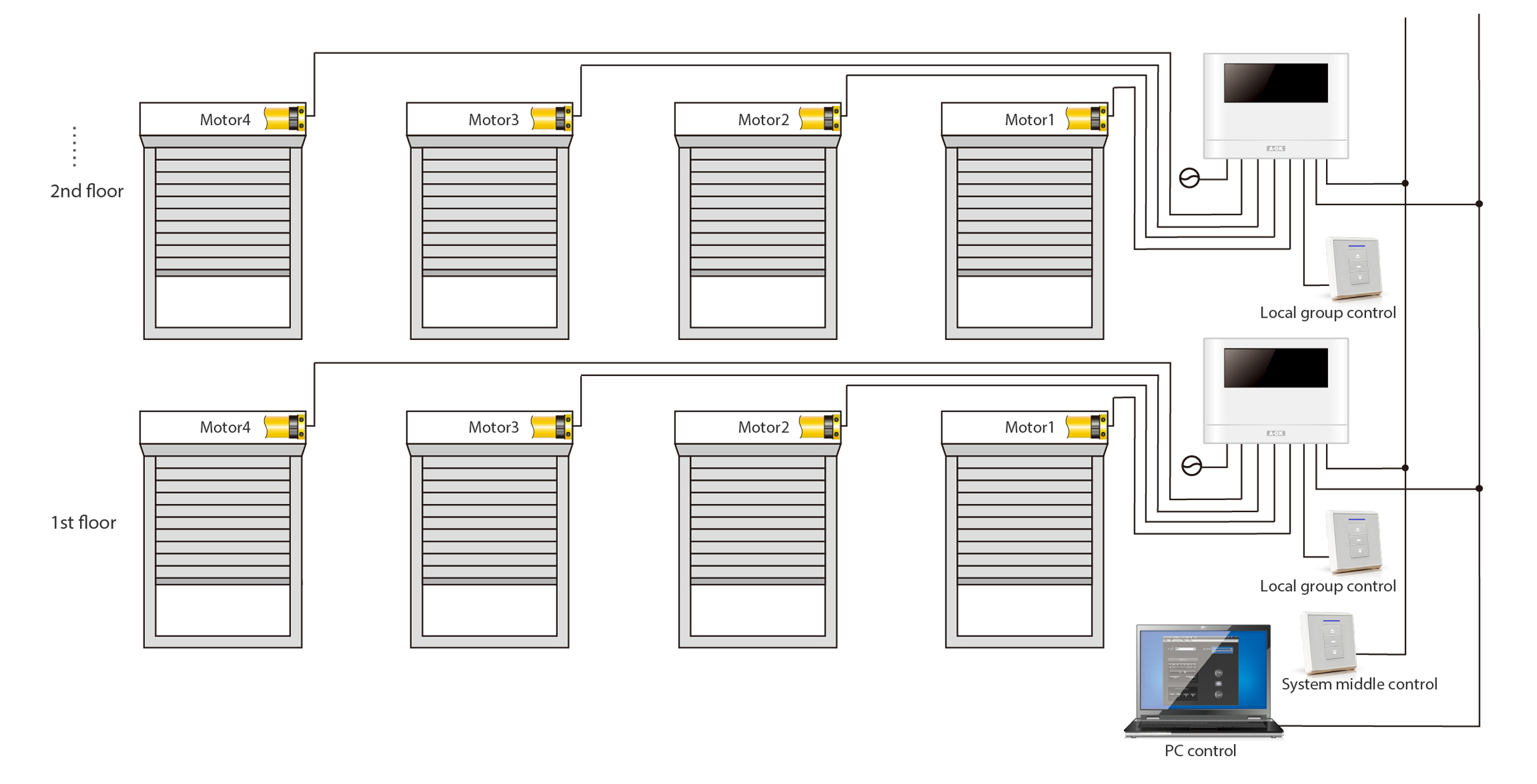

(diagram for dry contact switch, RS485 single and group control for block system)
