Tubular Motor for awnings, rolling shutters, electric blinds, shades, motorized screens, curtains, projection screens and roll-up application.
Brand:
A-OKItem NO.:
AM35Color:
Yellow or customLead Time:
30 days(A-OK standard)Order(MOQ):
1000 pcsWarranty:
up to 5 yearsCertificate:
CE/CB/TUV/C-TICK/R&TTE/FCC/RoHS/C-UL-US/C-TUV-USAM35 Zigbee Multiple Electronic Limits Tubular Motor

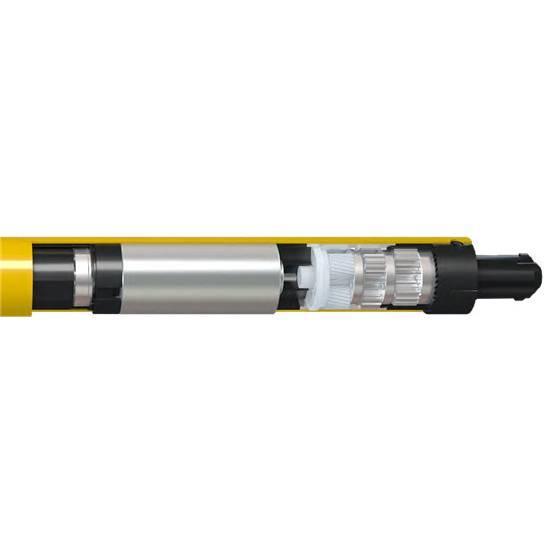

Each Tubular Motor includes one limit switch unit/ permanently connected capacitor/ braking unit/ single phase motor/ 145°C thermal safety protection against overheating/ mechanical reduction gear.
 |
 |
 |

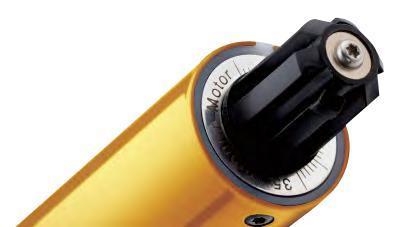

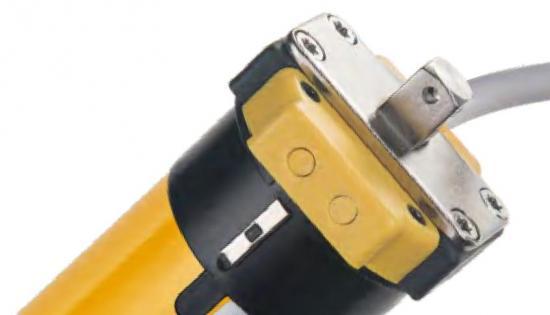

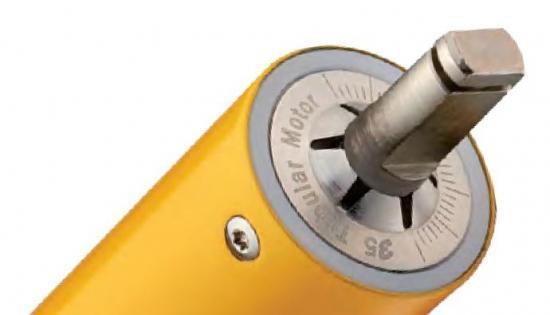

| Standard Limit Head | B Type Drive Shaft | A Type Drive Shaft |
AM35:

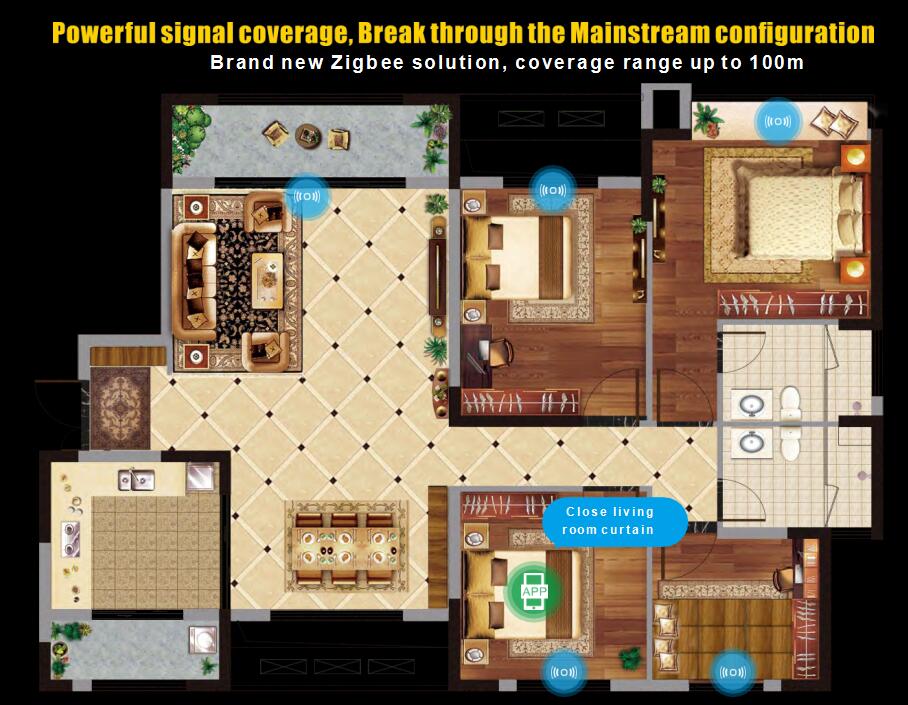

Multiple Electronic Limits DC Rebound Tubular MotorBrand new Zigbee solution, coverage range up to 100m, More powerful and stable to meet the large villas, hotels and other large space intelligent linkage demand, to make the intelligent linkage more efficient and stable
Features:
* Power by Li-ion battery, built-in or external optional Running noise as low as 40dB;Parameters:
Model No.
Rated Torque
Rated RPM
Motor Diameter
Rated Voltage
Rated Power
Rated Current
IP Class
230V AC 50/60Hz
AM35-6/28-MEL-PZ
6N.m
28rpm 35mm 230V
115W
0.485A
IP44
AM35-8/19-MEL-PZ
8N.m
19rpm
35mm
230V
115W
0.485A
IP44
120V AC 60Hz
AM35-6/28-MEL-PZ
6N.m
28rpm
35mm
120V
115W
1.1A
IP44
AM35-8/19-MEL-PZ
8N.m
19rpm
35mm
120V
115W
1.1A
IP44

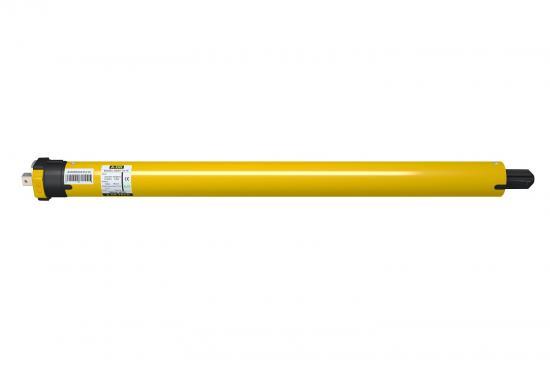

A-OK AC 35mm electric tubular motor with built-in RF receiver, widely applicable to electric roller shades, electric roller blinds, motorised roller blinds, roman blinds, zebra blinds, shangri blinds and venetian blinds.
The remote range is as far as 30 meters while its electronic limit would bring you more conveneinces to set and change the limit.
Wide voltage power supply can be used in the global market, quiet operation, noise lower than 40db, remote setting of roller shutter position
AM35 tubular roller shutter motor with electronic limit,Tubular motor diameter 35 mm adapters,designed for a quiet,widely uesd for roller blinds, windows, shops, projection walls or blinds.
AMC50 smart control electric vertical opening and closing blinds motor widely used for 90mm slats/vanes, Open and close via smart phone, tablet, remote control, or voice commands. Convenient installation.
Small size, classic black and white color matching, simple and atmospheric, one controller is equipped with 4 channels, which is more convenient to use.
AC152 Roller multi-channel remote control transmitter can help you accurately adjust the light problem of venetian blinds, solve your light adjustment problem, and it is easy to use and saves the complicated process of understanding the product.
