Indoor motorized aluminum venetian uses aluminum alloy curtain, through the coil system to drive the curtain body up and down operation and curtain piece turn over, play the role of light regulation and guidance, sun shading and heat insulation and decoration and beautification. Indoor blinds are installed in indoor or double-glazed rooms, with long service life, easy to clean and maintain (no wind influence), easy to install, low cost (relative to outdoor blinds), and no impact on the building structure; Dynamic use with optimized combination of high reflection glass or double breathing curtain wall glass.

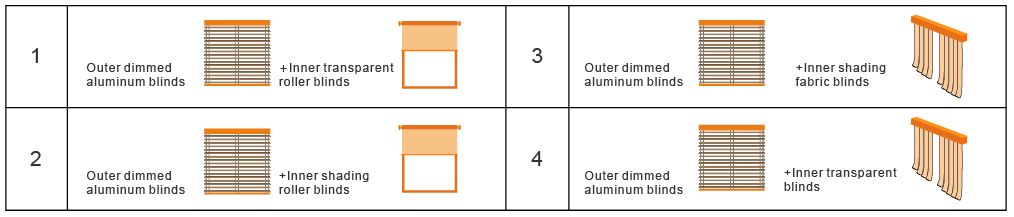

System solutions

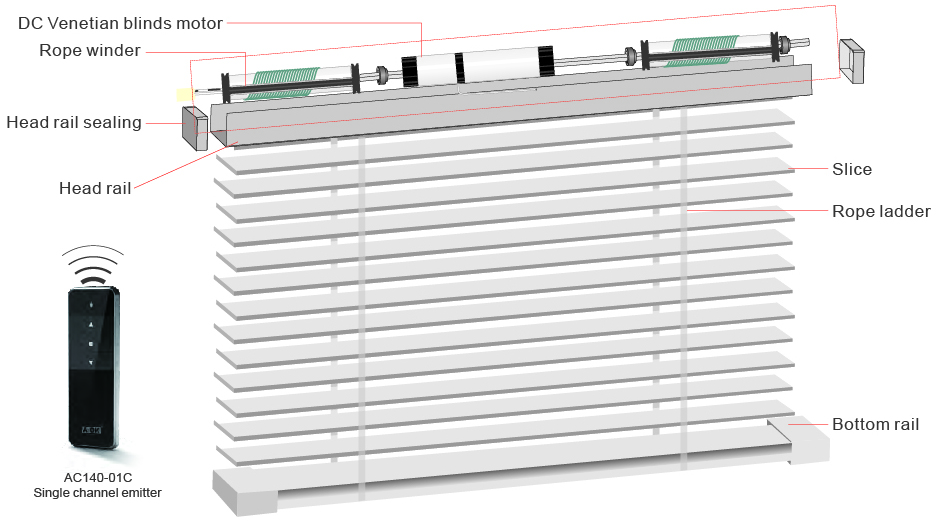

Motorized aluminum venetian blinds solution and structure

Features

◆ Can set up, middle, lower three limit points, power off stroke memory function;

◆ Supports two operating modes: click operation and continuous operation. The default mode is continuous operation;
◆ It is convenient to change the motor running direction;
◆ Direct detection of motor rotation number, high positioning accuracy;
◆ Position sensor open and short circuit protection function, blocking protection stop function;
◆ Built-in superheterodyne receiving module, receiving sensitivity≥110dbm, remote control distance >80m;
◆ Constant speed function, multiple synchronous speed consistent, rated speed 34rpm, error < 1rpm soil;
◆ Automatic travel setting function and fabric release function to prevent the impact of extrusion on the system;
◆ Fast start, fast response speed, slow down and stop near the stroke, to prevent the impact on the system.
